Measurements

This element is used to display and manage the measurements available in the dataset, acquired and calculated data.

_images/fig_n7idy1.png

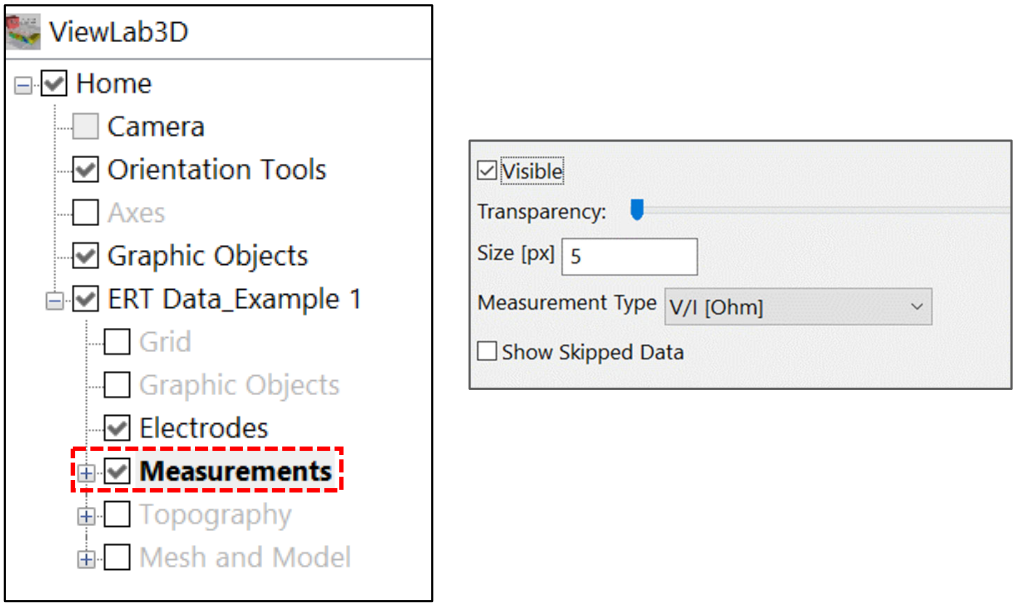

Figure 104 Measurement panel

As for other options exposed in the previous paragraphs, even for measurements the user can select their visibility and set the level of Transparency. In addition, there are others specific new options, which are described below.

Size

It is the size of the points which represent every single measurement in the 3D space. It is expressed in pixels [px].

_images/fig_i773k3.png

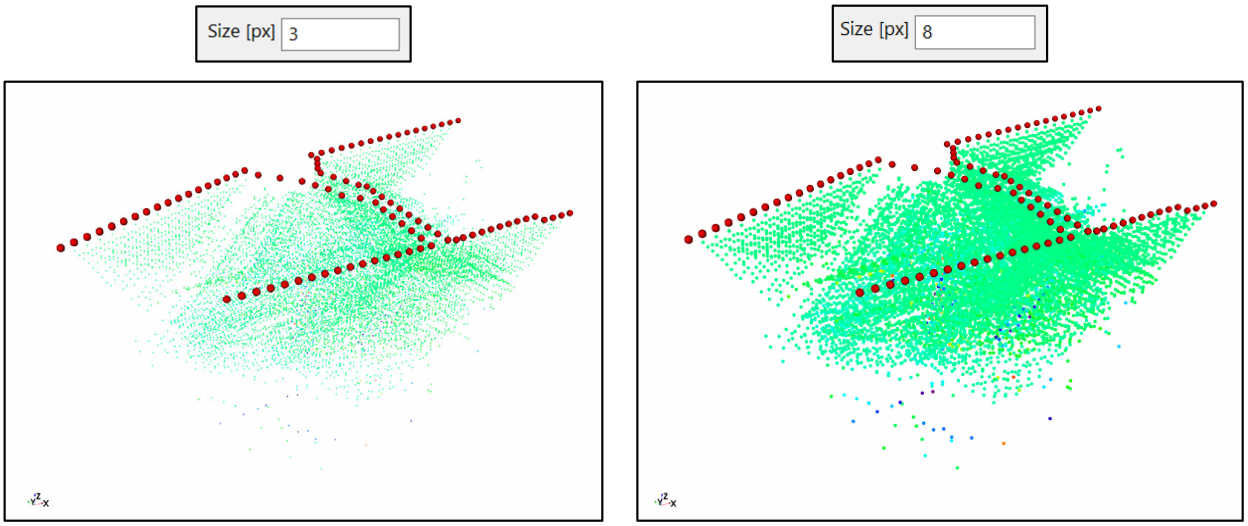

Figure 105 Different size of Apparent Resistivity points

Measurement Type

Choose the type of measurements to visualize using this pop-up menu, available measurements are:

  • V/I [Ohm]

  • Apparent Resistivity [Ohm*m]

  • IP [mV/V]

  • K [m]

  • V[mV]

  • I [mA]

  • Standard Deviation V/I [Ohm]

  • Standard Deviation IP [mV/V]

  • Calculated V/I [Ohm]

  • Calculated Apparent Resistivity [Ohm*m]

  • Calculated IP [mV/V]

  • Calculated Standard Deviation V/I [Ohm]

  • Calculated Standard Deviation IP [mV/V]

Colour Scale

A node Colour Scale is also available to customize how the value needs to be rendered as colour.
